Piecewise Functions – Definition, Graph & Examples

Piecewise FunctionsThere are instances where the expression for the functions depends on the given interval of the input values. When this happens, we call these types of functions piecewise-defined functions.

Piecewise functions are defined by different functions throughout the different intervals of the domain.

We actually apply piecewise functions in our lives more than we think so. Tax brackets, estimating our mobile phone plans, and even our salaries (with overtime pay) make use of piecewise functions.

This is why we’ve allotted a special article for this function. In this article, you’ll learn the following:

  • Definition of the piecewise function.
  • Learning how to evaluate piecewise-defined functions at given intervals.
  • Graphing and interpreting piecewise functions.

What is a piecewise function?

To fully understand what piecewise functions are and how we can construct our own piecewise-defined functions, let’s first dive into a deeper understanding of how it works.

Piecewise function definition

A piecewise function is a function that is defined by different formulas or functions for each given interval. It’s also in the name: piece. The function is defined by pieces of functions for each part of the domain.

2x, for x > 0piecewise function with three equations 1

1, for x = 0

-2x, for x < 0

As can be seen from the example shown above, f(x) is a piecewise function because it is defined uniquely for the three intervals: x > 0, x = 0, and x < 0.

How to read piecewise functions?

Once we have a given piecewise-defined function, we can interpret it by looking at the given intervals. If we take a look at our example, we can read it as:

  • When x > 0, f(x) is equal to 2x.
  • When x = 0, f(x) is equal to 1.
  • When x < 0, f(x) is equal to -2x.

When given a piecewise function graph, make sure to observe the given intervals where f(x) has varied graphs. But before we try out examples that involve analyzing piecewise function graphs, let’s go ahead and learn how we can evaluate and graph piecewise functions first.

How to solve piecewise functions?

Now that we’ve learned about this unique function, how do we make sure that we return the right value for the function given x? Here are tips to remember when solving for and evaluating piecewise functions:

  • Double-check where x lies in the given interval.
  • Evaluate the value using the corresponding function.

Let’s say we want to find f(8) using the piecewise function that we’ve shown.

2x, for x > 0piecewise function with three equations 1

1, for x = 0

-2x, for x < 0

Since 8 is greater than 0, the function we’ll use to evaluate f(8) is f(x) = 2x. Hence, we have f(8) = 2(8) = 16. This also means that f(-6) = -2(-6) = 12 and f(0) = 1.

How to graph piecewise functions?

As we have mentioned before, piecewise functions contain different functions for each of the given intervals. This means that when graphing piecewise functions, expect to graph different functions for each interval as well.

Here are some quick reminders when graphing piecewise functions:

  • It helps to identify how each function would look like.
  • For inclusive intervals (ie x ≥ 0), including the endpoints.
  • For exclusive intervals (ie x < 0), exclude the endpoints by using unfilled dots.

What are the common functions that you may encounter when graphing piecewise functions? Here are some resources, and feel free to check out the links to refresh your knowledge on some of the commonly used graphs:

These are not the only functions that piecewise functions can use, so make sure also to check your textbook’s library of functions whenever you need to. Let’s try graphing the piecewise function given in the first section.

2x, for x > 0piecewise function with three equations 1

1, for x = 0

-2x, for x < 0

When x > 0 and x < 0, f(x) returns a linear function. Find at least two pairs of points that satisfy each function and use them to construct the two linear graphs.

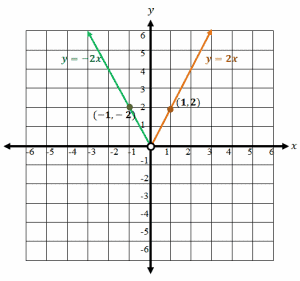

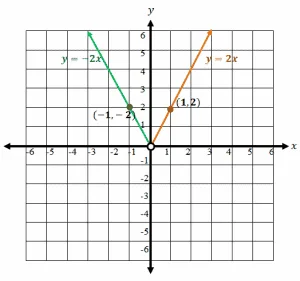

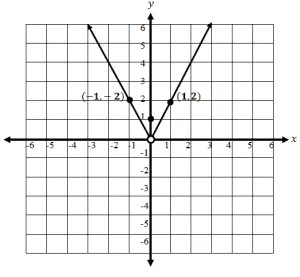

breaking down piecewise functions

Since both are exclusive inequalities, we leave the dot at the origin unfilled. Now, we are left with the condition when x = 0. Since the value is constant at f(x) =1, let’s a plot a point at (0,1).

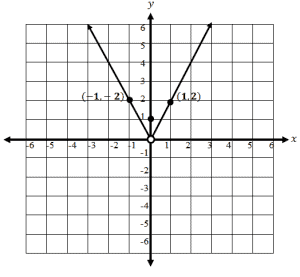

graphing piecewise functions

This graph returns the final graph for the given piecewise function. From the graph, we can see that f(x) has a domain of and range of (-∞, ∞)  and [0, -∞), respectively.

Piecewise Function Examples

We’ve covered all the essential properties and techniques we can use with piecewise functions, so it’s time for us to check our knowledge with these examples!

Example 1

Evaluate the given piecewise function at the given values of x as shown below.

piecewise function with three equations 1√x , for x > 0

5, for x = 0

x/6, for x < 0

     a. f(-36)

     b. f(0)

     c. f(49)

Solution

  • When x = -36 (or less than 0), the expression for f(x) is x/6. Let’s evaluate f(-36) using the expression. Hence, we have f(-36) = -36/6 = -6.
  • When x = 0, f(x) is a constant. This means that we have f(0) = 5.
  • When x = 49 (and consequently, greater 0), the expression for f(x) is √x. Let’s evaluate f(49) using the expression. Hence, we have f(49) = √49 = 7.

Example 2

Graph the piecewise function shown below. Using the graph, determine its domain and range.

fx piecewise function symbol2x , for x ≠ 0

1, for x = 0



Solution

For all intervals of x other than when it is equal to 0, f(x) = 2x (which is a linear function). To graph the linear function, we can use two points to connect the line. Just make sure that the two points satisfy y = 2x. Make sure to leave the point of origin unfilled.

graph of a piecewise function

Since f(x) = 1 when x = 0, we plot a filled point at (0,1). The graph above shows the final graph of the piecewise function.

Since the graph covers all values of x, the domain would be all real numbers or  (-∞, ∞). The same reasoning applies to the range of functions. Since it extends in both directions, the range of the function is (-∞, ∞) in interval notation.

Example 3

Graph the piecewise function shown below. Using the graph, determine its domain and range.

piecewise function with three equations 1x2 , for x ≤ 0

5, for 0 < x < 2

x/2 , for x ≥ 2

Solution

Let’s first break down the three intervals and identify how the graph of function would look like:

  • When x ≤ 0, f(x) becomes a quadratic function with a parabola that passes through the origin and (-2, 4). Since it only applies for 0 and negative numbers, we will only half of the parabola.
  • When 0 < x < 2, f(x) will a represent a constant which is a horizontal line passing through y = 5. Make sure to leave (0,5) and (2,5) unfilled since they are not part of the solution.
  • When x ≥ 2, f(x) is a function and will pass through (2, 1) and (6,3).

Using this information, we can now graph f(x).

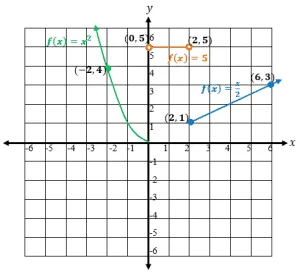

parabola and linear graph in a piecewise function

The image above breaks down the three components of the piecewise function. Let’s go ahead and simplify this graph now so that we can analyze it for its domain and range.

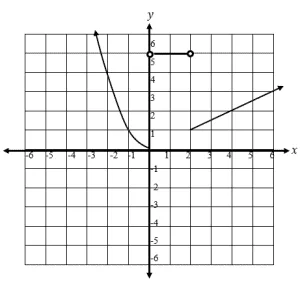

domain and range of piecewise function

Since all values of x extend in both directions, the domain would be all real numbers or  (-∞, ∞). Since the graph only covers the values of y above the x-axis, the range of the function is [0, ∞) in interval notation.

Example 4

Spoken word poetry is being held at the nearby cafe. They charge $6 per person for a table of 1 to 5 guests. They also offer a fixed fee of $50 for a table with 6 or more people. Write a function that relates the number of people,x, and the cost of attending the event, f(x).

Solution

Let’s go ahead and break down the problem and find the expression of f(x) for each interval:

  • For a table of 1 to 5 guests, we can express that as 1 ≤ x ≤ 5 in terms of x. Since it would cost each guest $6, the total for x guests is 6x.
  • Now, for a table with 6 or more people, we can express the interval as x ≥ 6. For this interval, f(x) will always be equal to 60.

We can now summarize this into a piecewise function:

fx piecewise function symbol6x, for 1 ≤ x ≤ 5

50, for x ≥ 6

This piecewise function represents the cost of f(x) for x number of guests.

Practice Questions

1. \begin{aligned}f(x)=\left\{\begin{matrix}\sqrt{x – 1} ,&x>0\\ 5 ,&x =0\\x + 1&x<0\end{matrix}\right.\end{aligned}

Which of the following shows the value of the piecewise function at $f(-8)$?

2. \begin{aligned}f(x)=\left\{\begin{matrix}\sqrt{x – 1} ,&x>0\\ 5 ,&x =0\\x + 1&x<0\end{matrix}\right.\end{aligned}

Which of the following shows the value of the piecewise function at $f(0)$?

3. \begin{aligned}f(x)=\left\{\begin{matrix}\sqrt{x – 1} ,&x>0\\ 5 ,&x =0\\x + 1&x<0\end{matrix}\right.\end{aligned}

Which of the following shows the value of the piecewise function at $f(65)$?

4. \begin{aligned} g(x)=\left\{\begin{matrix}3x^2 ,&x\leq0\\ 4x – 6 ,&0<x < 2\\2x &x \geq 2\end{matrix}\right.\end{aligned}

Which of the following shows the value of the piecewise function at $g(-2)$?

5. \begin{aligned} g(x)=\left\{\begin{matrix}3x^2 ,&x\leq0\\ 4x – 6 ,&0<x < 2\\2x &x \geq 2\end{matrix}\right.\end{aligned}

Which of the following shows the value of the piecewise function at $g(0.75)$?

6. \begin{aligned} g(x)=\left\{\begin{matrix}3x^2 ,&x\leq0\\ 4x – 6 ,&0<x < 2\\2x &x \geq 2\end{matrix}\right.\end{aligned}

Which of the following shows the value of the piecewise function at $g(7)$?

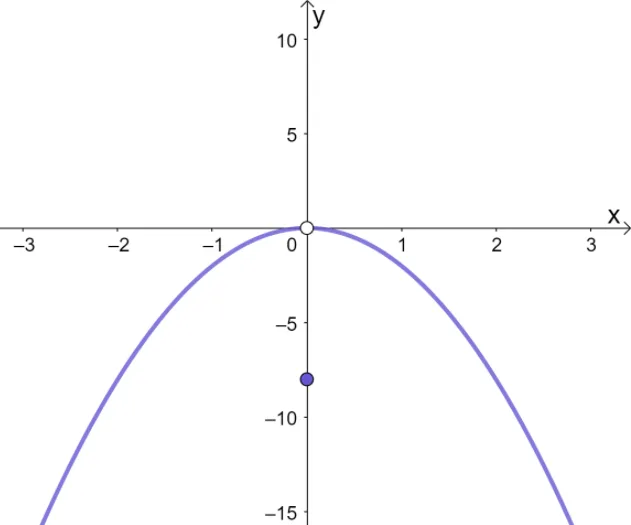

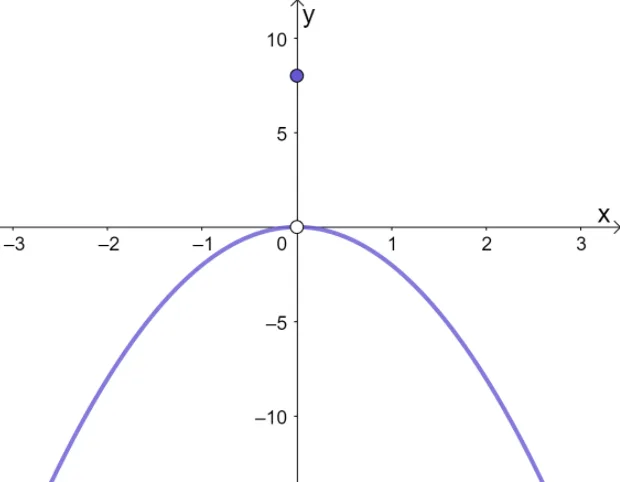

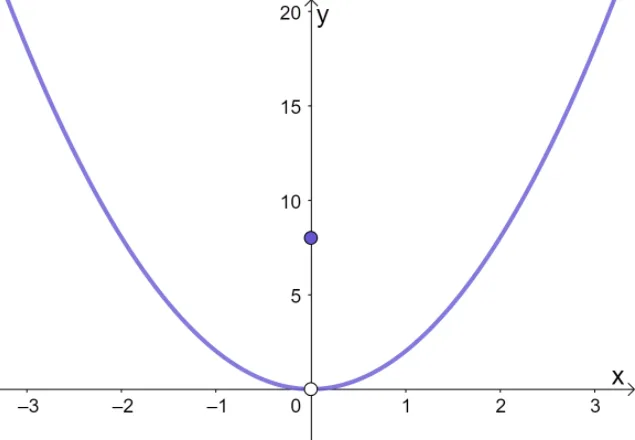

7. \begin{aligned} f(x)=\left\{\begin{matrix}2x^2 ,&x\neq0\\ 8 ,&x =0\end{matrix}\right.\end{aligned}

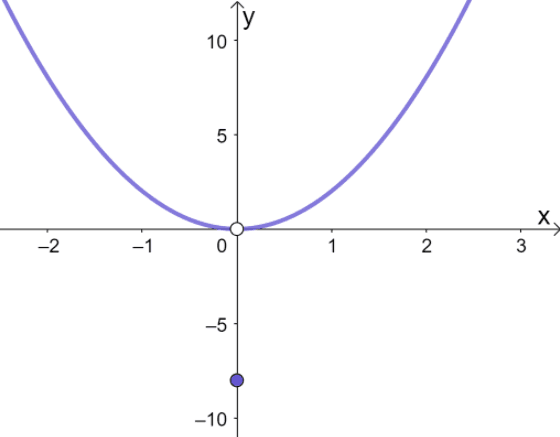

Which of the following shows the graph of the piecewise function shown above?

8. \begin{aligned} f(x)=\left\{\begin{matrix}2x^2 ,&x\neq0\\ 8 ,&x =0\end{matrix}\right.\end{aligned}

Which of the following shows the domain and range of the piecewise function shown above?

(Hint: Use the graph from the previous problem)

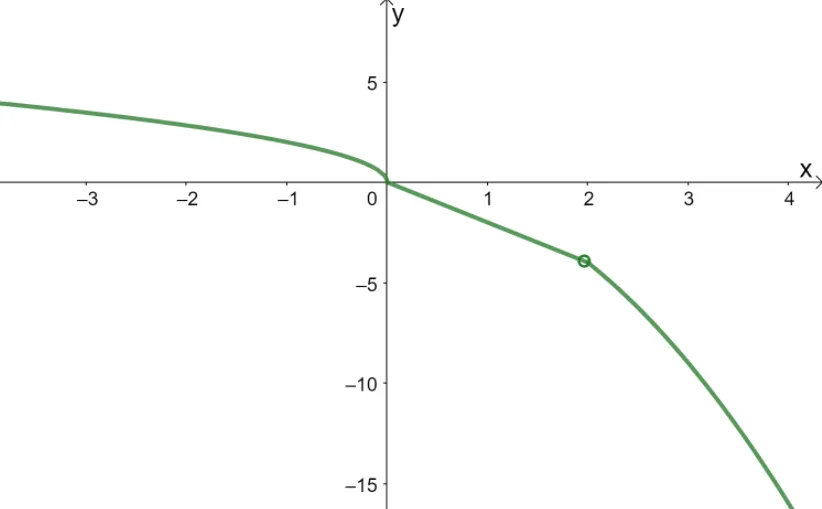

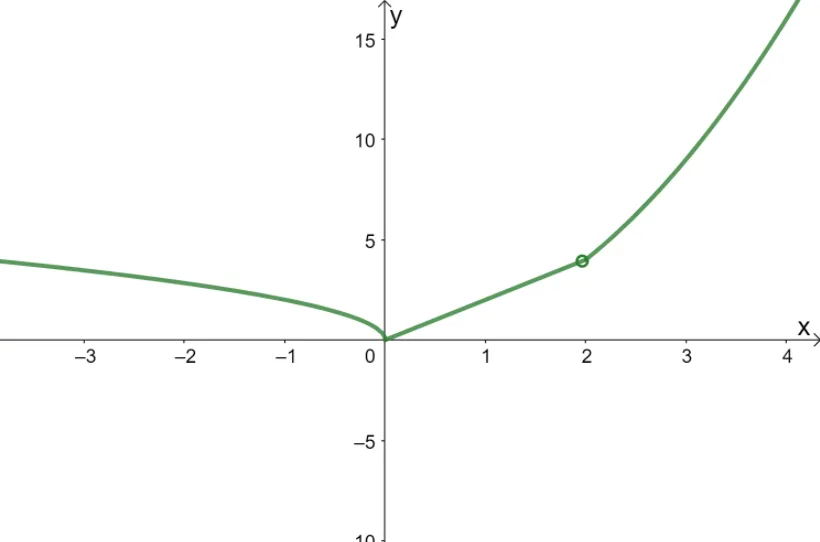

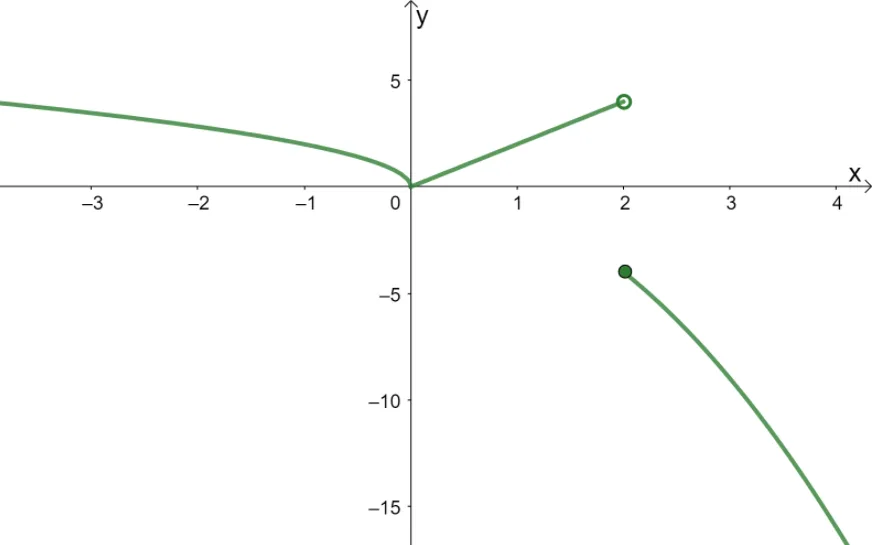

9. \begin{aligned} f(x)=\left\{\begin{matrix}\sqrt{-4x} ,&x\leq 0\\ 2x ,&0< x< 2\\-x^2, &x\leq 2\end{matrix}\right.\end{aligned}

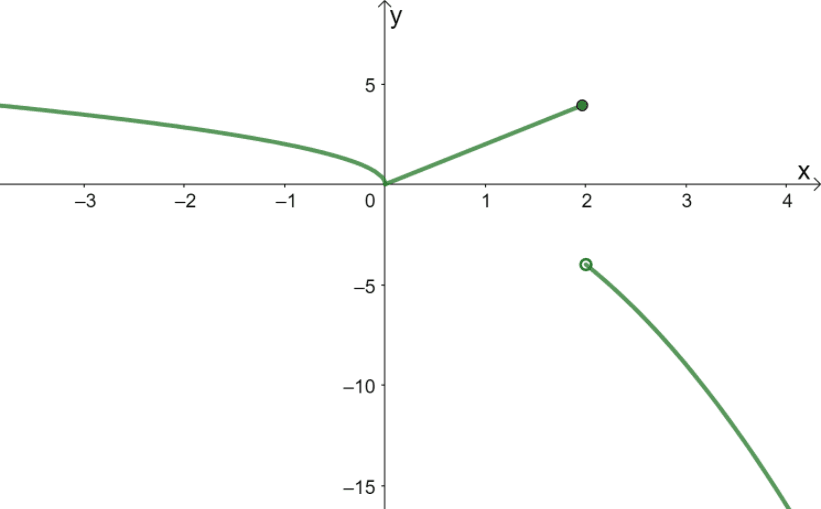

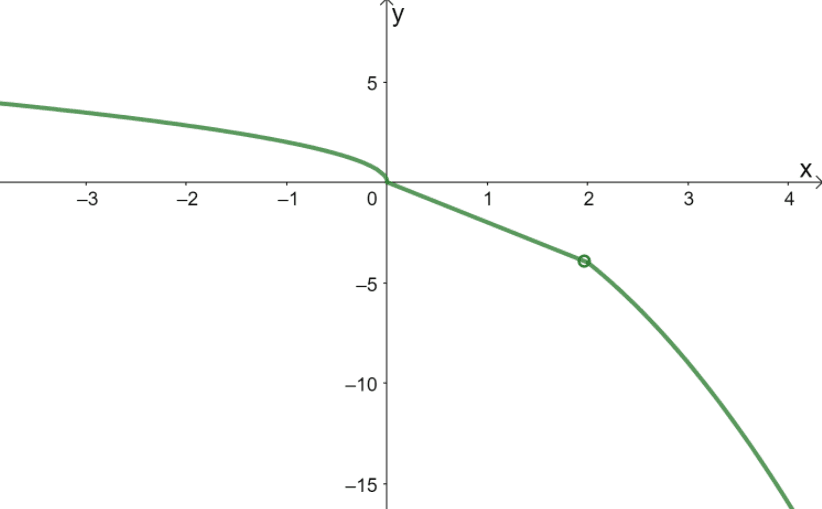

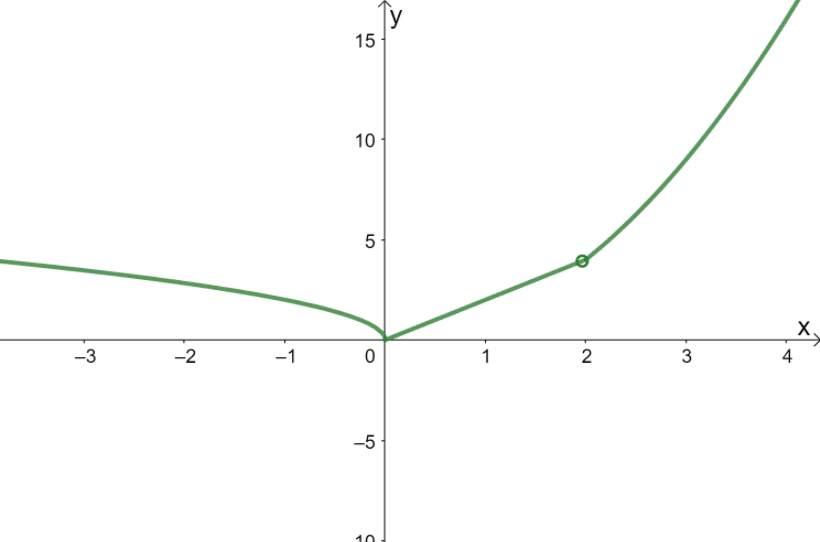

Which of the following shows the graph of the piecewise function shown above?



10. \begin{aligned} f(x)=\left\{\begin{matrix}\sqrt{-4x} ,&x\leq 0\\ 2x ,&0< x< 2\\-x^2, &x\leq 2\end{matrix}\right.\end{aligned}

Which of the following shows the domain and range of the piecewise function shown above?

(Hint: Use the graph from the previous problem)

11. Suppose that you have a summer job that pays $\$12$ per hour. You are required to work for at least $30$ hours per week. The company pays time $1.5$ times your hourly rate for overtime. Which of the following piecewise function represents your weekly pay?

12. Suppose that you have a summer job that pays $\$12$ per hour. You are required to work for at least $30$ hours per week. The company pays time $1.5$ times your hourly rate for overtime. How much would you earn if you worked for $48$ hours that week?
